Here, NEWPAN is compared against experimental data from NASA.
William P. Henderson, "Effects of wing leading-edge radius and Reynolds number on longitudinal aerodynamic characteristics of highly swept wing-body configurations at subsonic speeds" - NASA TN D-8361, 1976

The basic geometry is illustrated here via the surface panelling.

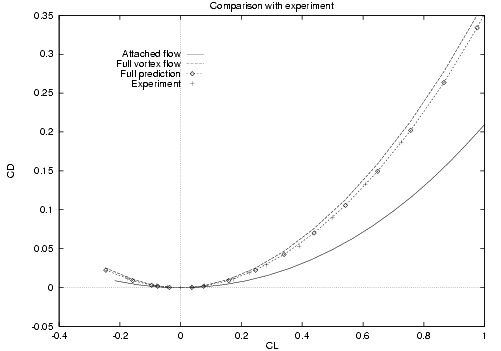

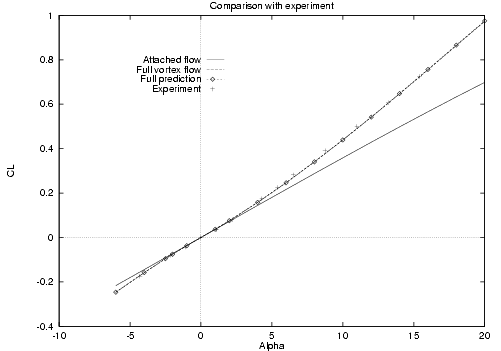

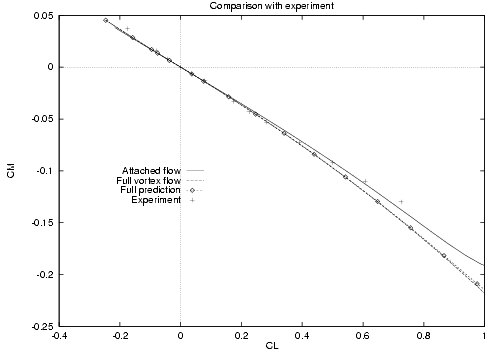

Results for Cl, Cd, Cm are shown for an incidence sweep.
