Here, NEWPAN is compared against NASA experimental data.
John W. Boyd, "Aerodynamic characteristics of two 25-percent-area trailing-edge flaps on an aspect ratio 2 triangular wing at subsonic and supersonic speeds" - NASA RM A52D01c, 1952

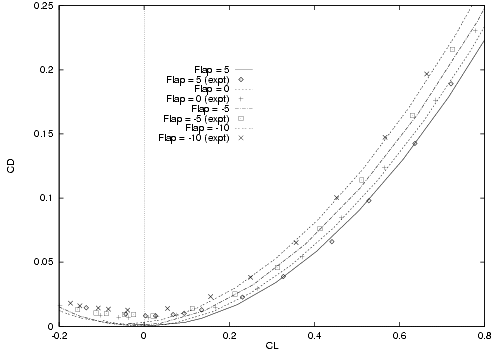

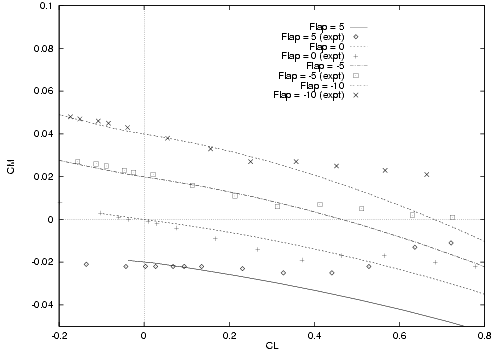

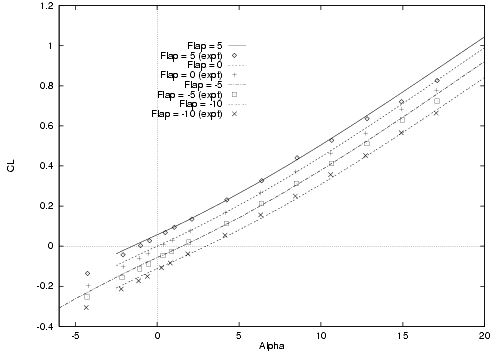

Results for Cl, Cd, Cm are shown for an incidence sweep, for different flap angle deflections
